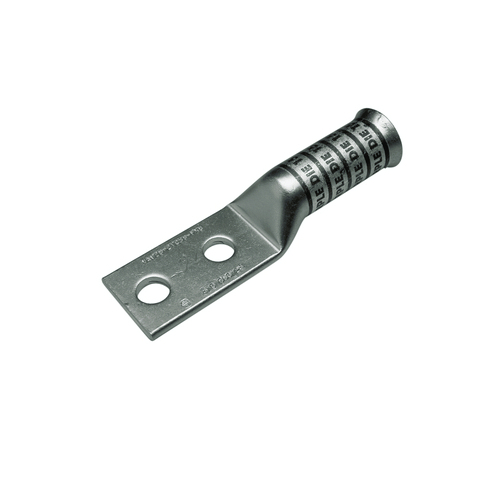

Color Code | Blue |
Connector Type | Terminal |
Die Index | 7 |
Feature - Barrel Style | Belled |
Feature - Barrel Type | Long |
Material | Copper |
Physical Attribute - Number of Holes | 2 |
Plated | Y |
Plating Type | Tin - Electro Plated |
Trade Name | HYLUG™ |
Type | Long Barrel, Tin Plated |
Dimension - B Length fraction | 1-5/16 in |
Dimension - B Length inch | 1.22 in |
Dimension - Bolt Hole Size inch | 0.56 in |
Dimension - D inch | 3.01 in |
Dimension - Hole Size inch | 0.56 in |
Dimension - Hole Size mm | 14 mm |
Dimension - L Length Overall mm | 115 mm |
Dimension - Length Overall inch | 4.51 in |
Dimension - N inch | 0.62 in |
Dimension - Outside Diameter inch | 0.31 in |
Dimension - Pad Width inch | 0.83 in |
Dimension - Strip Length inch | 1-5/16 |
Dimension - Stud Size inch | 1/2 |
Dimension - Z inch | 0.64 in |
Physical Attribute - Tongue Angle | Straight |
Rating - KVA | 35 kV |
Rating - Minimum Voltage | 600 |
Voltage - Maximum | 35000 |
Conductor - Copper DLO Size | 6 (61/#24) DLO |
Conductor - Copper DLO Size Range | 6 AWG |
Conductor - Copper Flex G Size | 6 AWG |
Conductor - Copper Flex G Size Range | 6 AWG |
Conductor - Copper Flex H Size | 6 AWG |
Conductor - Copper Flex H Size Range | 6 AWG |
Conductor - Copper Flex I Size | 6 AWG |
Conductor - Copper Flex I Size Range | 6 AWG |
Conductor - Copper Flex K Size | 6 AWG |
Conductor - Copper Flex K Size Range | 6 AWG |
Conductor - Copper Flex M Size | 6 AWG |
Conductor - Copper Flex M Size Range | 6 AWG |
Conductor - Copper Str Navy Size Range | 30 Navy |
Conductor - Copper Str Size | 6 AWG |
Conductor - Copper Str Size Range | 6 AWG |
Conductor - Material | Copper |
Certification - CSA Approved | Yes |
Certification - ETL | No |
Certification - UL Recognized | No |
Certification - cULus | No |
Industry Standard(s) | UL 486A-486B |
Standards - RoHS Compliance Status | CM |
UL Listed | Yes |
