STC, KD 2 1/2, Double Acting Rotary Pneumatic, Actuator

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Port Size

2-1/2" NPT

Valve Body

2-Way:Full Port3-Way:Reduced Port

Body & Ball Material

316 Stainless Steel / CF8M

Operating Temperature

Media:-60degF to 450degF (-51degC to 232degCAmbient:-4degF to 176degF (-20degC to 80degC)

Operating Pressure

800 PSI at 100degF WOG

Controlling Pressure Range

45 PSI to 120 PSI

Controlling Medium

Air, Inert Gas

Service Medium

Liquid, Water, Air, Gas, Steam

Maximum Viscosity

600 mm²/s

Mounting Standard

DIN 3203-M3, ISO 5211 Mounting Pad, ISO 5211 Platform

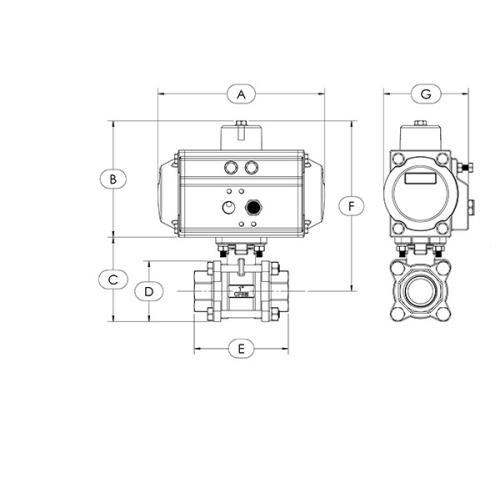

Rotary Air Actuator

AT088D

A - 251.5
B - 145.7
C - 160.1
D - 122.4
E - 172
F - 244.6
G - 105

Product Details

Port Size

2-1/2" NPT

Valve Body

2-Way:Full Port3-Way:Reduced Port

Body & Ball Material

316 Stainless Steel / CF8M

Operating Temperature

Media:-60degF to 450degF (-51degC to 232degCAmbient:-4degF to 176degF (-20degC to 80degC)

Operating Pressure

800 PSI at 100degF WOG

Controlling Pressure Range

45 PSI to 120 PSI

Controlling Medium

Air, Inert Gas

Service Medium

Liquid, Water, Air, Gas, Steam

Maximum Viscosity

600 mm²/s

Mounting Standard

DIN 3203-M3, ISO 5211 Mounting Pad, ISO 5211 Platform

Rotary Air Actuator

AT088D

A - 251.5
B - 145.7
C - 160.1
D - 122.4
E - 172
F - 244.6
G - 105

Note

Note: Please read description carefully. Do not base your order on the picture presented.
