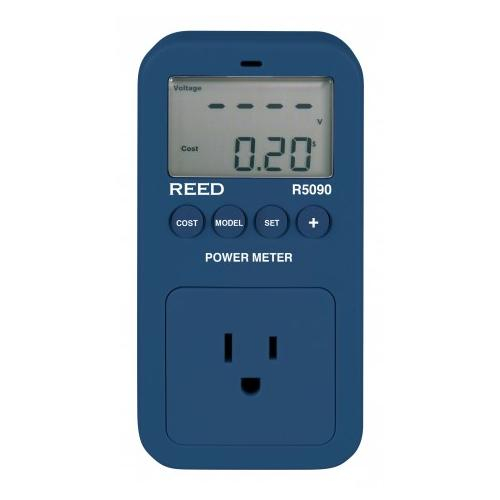

R5090, Power Meter

Includes:

Power Meter
Battery

The R5090 is an easy-to-use power meter that accurately measures power consumption of electronic devices. Simply set the local utility rate in Killowatt-hours (KWH) and connect an appliance to start tracking cost. The R5090 can also be used to verify power quality by monitoring voltage, frequency and power factor.

Features

Calculates operating costs of electronic devices
Displays 8 important units of measure (Voltage, Current, Watts, Frequency, Power Factor, Energy used (kWh), Total Cost and Elapsed Time)
Easy-to-read, dual LCD display
Built-in battery backup
Conforms to UL and CSA standards

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measuring Ranges	Voltage: 100 to 150VAC 60Hz Current: 0 to 15A Power: 0 to 1800W Power Factor: 0 to 1.00 Frequency: 45 to 65Hz
Accuracy	Voltage: ±(1% rdg. + 1dgt.) Current: ±(1% rdg. + 10dgt.) at 0.010 to 0.999A; ±(1% rdg.+ 5dgt.) at 1.00 to 15.00A Power: ±(1% rdg. + 10dgt.) at 1.0 to 100.0W; ±(1% rdg. + 5dgt.) at 100.0 to 999.9W; ±(1% rdg. + 1dgt.) at 1000 ~ 1800W Power Factor: ±(2% rdg. + 10dgt.) at 0.30 to 0.49; ±(2% rdg. + 5dgt.) at 0.50 to 1 Frequency: ±(1% rdg. + 1dgt.)
Logging Ranges	Energy: 0 to 9999kWh Cost: $0 to $9999 Total Time: 0min to 9999 days
Display	Dual LCD
Display Update	1 time/sec.
Overrange Indicator	Yes
Power Supply	1 3V Battery (CR2032, back up battery)
Overvoltage Category	CAT. II 150V
Product Certifications	CE, ETL, Conforms to UL STD.61010-1, 61010-2-030; Certified to CSA STD.C22.2 NO.61010-1, 61010-2-030
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 90%
Dimensions	5.1 x 2.6 x 1.5" (130 x 65 x 37mm)
Weight	1.9 oz (155g)

Product Details

Measuring Ranges	Voltage: 100 to 150VAC 60Hz Current: 0 to 15A Power: 0 to 1800W Power Factor: 0 to 1.00 Frequency: 45 to 65Hz
Accuracy	Voltage: ±(1% rdg. + 1dgt.) Current: ±(1% rdg. + 10dgt.) at 0.010 to 0.999A; ±(1% rdg.+ 5dgt.) at 1.00 to 15.00A Power: ±(1% rdg. + 10dgt.) at 1.0 to 100.0W; ±(1% rdg. + 5dgt.) at 100.0 to 999.9W; ±(1% rdg. + 1dgt.) at 1000 ~ 1800W Power Factor: ±(2% rdg. + 10dgt.) at 0.30 to 0.49; ±(2% rdg. + 5dgt.) at 0.50 to 1 Frequency: ±(1% rdg. + 1dgt.)
Logging Ranges	Energy: 0 to 9999kWh Cost: $0 to $9999 Total Time: 0min to 9999 days
Display	Dual LCD
Display Update	1 time/sec.
Overrange Indicator	Yes
Power Supply	1 3V Battery (CR2032, back up battery)
Overvoltage Category	CAT. II 150V
Product Certifications	CE, ETL, Conforms to UL STD.61010-1, 61010-2-030; Certified to CSA STD.C22.2 NO.61010-1, 61010-2-030
Operating Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	14 to 140°F (-10 to 60°C)
Operating Humidity Range	10 to 90%
Dimensions	5.1 x 2.6 x 1.5" (130 x 65 x 37mm)
Weight	1.9 oz (155g)
