Options and Related Products

NIST Certificate:: NIST Certificate: Yes
Version:: Version: Loop Calibrator

R5825-NIST Includes Only:

Loop Calibrator
Test Leads
Alligator Clips
Batteries
NIST Certificate

Features:

mA sourcing and measurement
0-30 VDC measurement to check loop voltage
Basic measurement/sourcing accuracy of 0.02% and 0.05%, respectively
Simulate mA and % with 0.001% display span
Selectable step or ramp outputs
Easy to read 6-digit LCD
Built-in LED flashlight
Internal 24V loop power supply
Low battery indicator and auto shut off

Applications:

Testing loop-powered isolators and two-wire transmitters
Verify and calibrate current loops in industrial control systems
Troubleshooting and maintaining 4-20mA current loops in sensors, transmitters, and controllers
Accurately simulate mA signals for valve positioners and actuators
Portable solution for on-site calibration of loop-powered devices in challenging environments

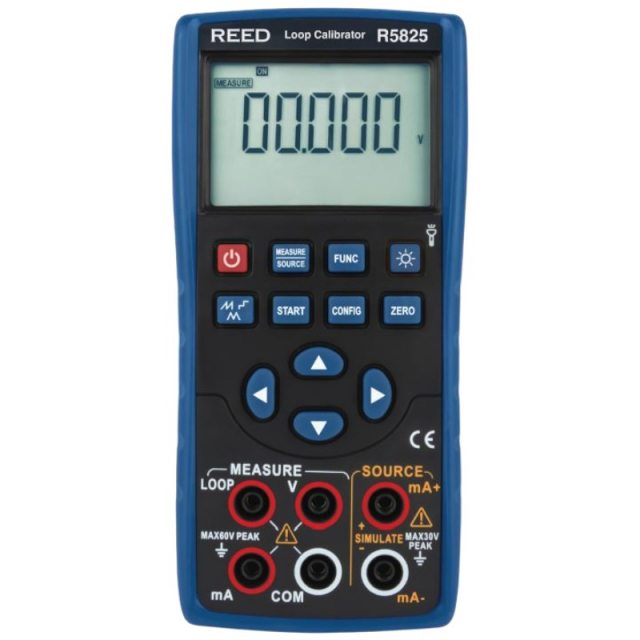

This loop calibrator features mA sourcing, simulation and measurement. It has a 24V loop power supply and selectable step or ramp outputs.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

DC Voltage Measurement
Range	30V
Output Range	-30.000 to 30.000V
Resolution	0.001V
Accuracy	±0.02% rdg. + 2mV
DC Current Measurement
Range	30mA
Output Range	-30.000mA to 30.000mA
Resolution	0.001mA
Accuracy	±0.02% rdg. + 4μA
Current Output
Range	30mA
Output Range	0.000 to 30.000mA
Resolution	0.001mA
Accuracy	±0.05% rdg. + 4μA
Analog Transducer Output
Loop Power	24V
Accuracy	±10%
General Specifications
Display	6-Digit LCD
Backlit Display	Yes
Kick Stand	Yes
Magnetic Hanger Compatible	Yes (R5900 sold separately)
Built-In Flashlight	Yes
Zero Adjustment Button	Yes
Power Supply	3 AA Batteries
Battery Life	Approx. 20 hours
Cold Junction Compensation	Yes
Auto shut off	Yes (up to 60 minutes/off)
Low Battery Indicator	Yes
Replaceable Test Leads	Yes
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity Range	0 to 85%
Storage Temperature	14 to 122°F (-10 to 50°C)
Dimensions	7.5 x 3.5 x 2.1" (191 x 90 x 53mm)
Weight	17.6oz (500g)

Product Details

DC Voltage Measurement
Range	30V
Output Range	-30.000 to 30.000V
Resolution	0.001V
Accuracy	±0.02% rdg. + 2mV
DC Current Measurement
Range	30mA
Output Range	-30.000mA to 30.000mA
Resolution	0.001mA
Accuracy	±0.02% rdg. + 4μA
Current Output
Range	30mA
Output Range	0.000 to 30.000mA
Resolution	0.001mA
Accuracy	±0.05% rdg. + 4μA
Analog Transducer Output
Loop Power	24V
Accuracy	±10%
General Specifications
Display	6-Digit LCD
Backlit Display	Yes
Kick Stand	Yes
Magnetic Hanger Compatible	Yes (R5900 sold separately)
Built-In Flashlight	Yes
Zero Adjustment Button	Yes
Power Supply	3 AA Batteries
Battery Life	Approx. 20 hours
Cold Junction Compensation	Yes
Auto shut off	Yes (up to 60 minutes/off)
Low Battery Indicator	Yes
Replaceable Test Leads	Yes
Product Certifications	CE
Operating Temperature	32 to 122°F (0 to 50°C)
Operating Humidity Range	0 to 85%
Storage Temperature	14 to 122°F (-10 to 50°C)
Dimensions	7.5 x 3.5 x 2.1" (191 x 90 x 53mm)
Weight	17.6oz (500g)
