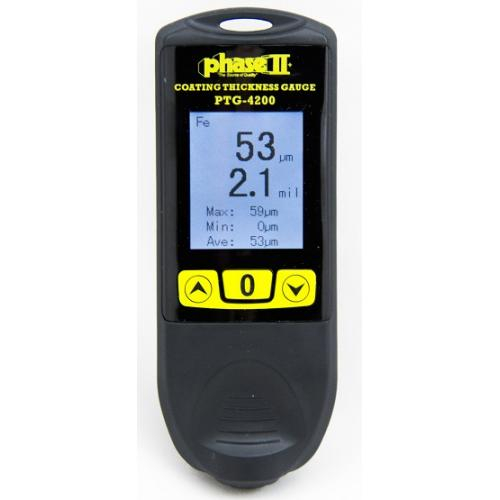

Phase II PTG-4200 Coating Thickness Gauge

  • Brand Phase II
  • Part # PTG-4200
Availability
Discontinued
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

Coating Thickness Gauge

The PHASE II PTG-4200 coating thickness gauge can perform two different methods of calculating thickness measurement by utilizing the characteristics of both eddy current and magnetic induction. Testing performance is both non-destructive and extremely accurate. With this state of the art coating thickness gauge, you can easily detect the coating thickness of nonmagnetic coating on a magnetic substrate (ferrous) or an insulating coating on a non-magnetic conductive substrate (non-ferrous) utilizing our auto-detect, integrated probe The PTG-4200 coating thickness gauge can be used in many areas of industry including automotive auctions, manufacturing, general engineering, commercial inspection, etc.

Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Measuring range0-1,250 µm max. or 0-50 mils
Resolution1µm / 0.1mils
Accuracy+/- 3% + 2µm ( +/-3%+0.1 mil )
Display3 digit selectable color LCD w/flip screen
StatisticsMin/Max, Average
Min. measuring area0.2" x 0.2" (5mm x 5mm)
Min. radius of curvatureConvex: 0.12" (3mm)
Concave - 1.2" (30mm)
Max. Surface temperature of test object302 degrees F (contact time max is 2 seconds)
Min. substrate thicknessConvex: Ferrous: 20 mils (0.5mm)
Non-ferrous - 2 mils (50 µ m)
Power source2-AAA batteries
Dimensions119 x 45 x 27mm
Weight2.4oz. (w/o Batteries)
Product Details
Measuring range0-1,250 µm max. or 0-50 mils
Resolution1µm / 0.1mils
Accuracy+/- 3% + 2µm ( +/-3%+0.1 mil )
Display3 digit selectable color LCD w/flip screen
StatisticsMin/Max, Average
Min. measuring area0.2" x 0.2" (5mm x 5mm)
Min. radius of curvatureConvex: 0.12" (3mm)
Concave - 1.2" (30mm)
Max. Surface temperature of test object302 degrees F (contact time max is 2 seconds)
Min. substrate thicknessConvex: Ferrous: 20 mils (0.5mm)
Non-ferrous - 2 mils (50 µ m)
Power source2-AAA batteries
Dimensions119 x 45 x 27mm
Weight2.4oz. (w/o Batteries)
