Capacity:: Capacity: 1000 lbFin / 80 lbFft / 11500 kgFmm / 11000 Ncm / 110 Nm

Mark-10, MR55-1000, Series R55 Plug & Test Square Drive Torque Sensor, 1000 lbFin

This rugged series of torque sensors is ideal for a wide range of torque testing applications in numerous industries. Square drives on both ends permit inline use with a torque wrench, or for use in OEM and other applications. Compatible with Mark-10 indicators (sold separately) through unique Plug & TestTM technology.

Includes:

NIST-traceable certificate of calibration with data

Features:

Rugged cylindrical design
Square drives on each end
Member of the Plug & Test™ family of interchangeable sensors and indicators
Stainless steel and aluminum construction
Accuracy: ± 0.6% of full scale + indicator

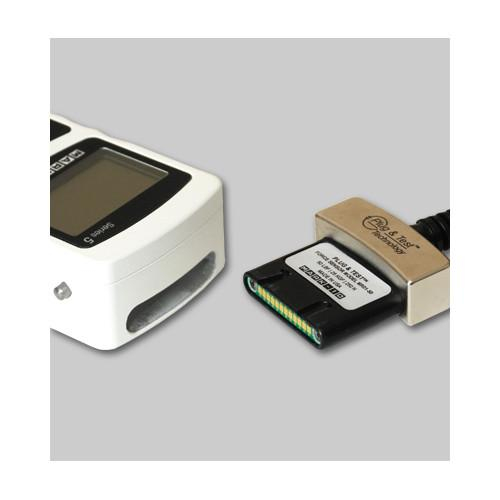

	Unique Plug & TestTM technology allows for interchangeable sensors to be used with a Mark-10 indicator. All calibration and configuration data is saved in the smart connector.

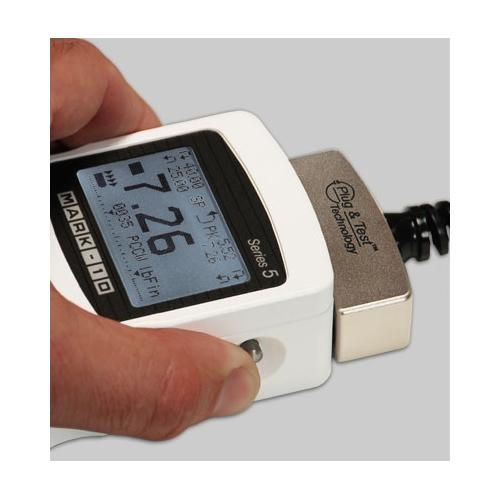

	The Plug & TestTM connector locks into the receptacle in the indicator when fully inserted. Dual buttons on the indicator housing release the connector for easy removal. Gold plated spring contacts ensure long lasting and reliable connection.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Capacity x Resolution with Model 7i & 5i Indicator	1000 x 1 lbFin / 80 x 0.1 lbFft / 11500 x 10 kgFmm / 11000 x 10 Ncm / 110 x 0.1 Nm
Capacity x Resolution with Model 3i Indicator	1000 x 1 lbFin / 11500 x 10 kgFmm / 11000 x 10 Ncm
Accuracy	±0.6% of full scale
Safe overload	150% of full scale
Operating temperature	40°F - 100°F [5°C - 38°C]
Operating humidity	96% max. (non-condensing)
Weight	1.3 lb (0.6 kg)
Drive Size	1/2"

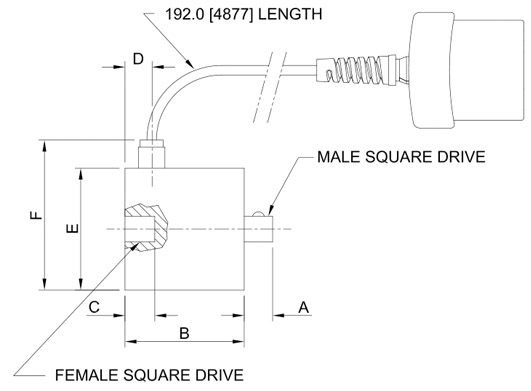

A (in [mm])	0.59 [15.0]
B (in [mm])	1.73 [44.0]
C (in [mm])	0.63 [16.0]
D (in [mm])	0.39 [10.0]
ØE (in [mm])	1.77 [45.0]
F (in [mm])	2.32 [59.0]

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Capacity x Resolution with Model 7i & 5i Indicator	1000 x 1 lbFin / 80 x 0.1 lbFft / 11500 x 10 kgFmm / 11000 x 10 Ncm / 110 x 0.1 Nm
Capacity x Resolution with Model 3i Indicator	1000 x 1 lbFin / 11500 x 10 kgFmm / 11000 x 10 Ncm
Accuracy	±0.6% of full scale
Safe overload	150% of full scale
Operating temperature	40°F - 100°F [5°C - 38°C]
Operating humidity	96% max. (non-condensing)
Weight	1.3 lb (0.6 kg)
Drive Size	1/2"
A (in [mm])	0.59 [15.0]
B (in [mm])	1.73 [44.0]
C (in [mm])	0.63 [16.0]
D (in [mm])	0.39 [10.0]
ØE (in [mm])	1.77 [45.0]
F (in [mm])	2.32 [59.0]
