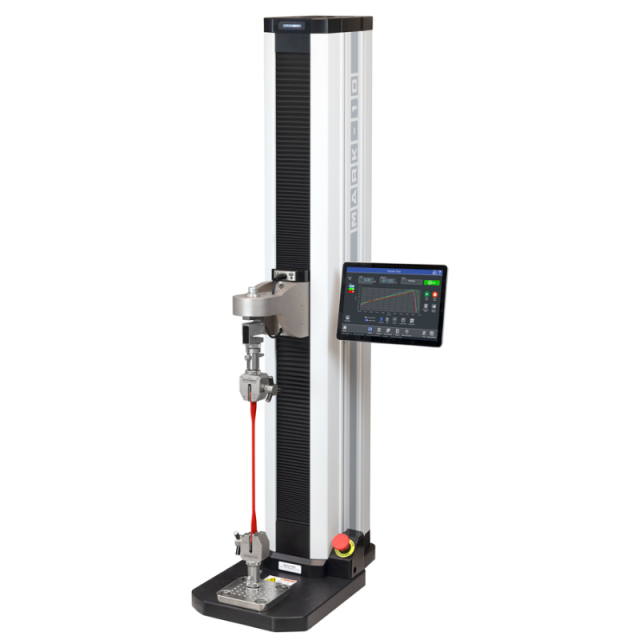

Mark-10, F755-IMT, Test frame with IntelliMESUR pre-loaded tablet control panel, vertical, 750 lbF / 3.4 kN

Rigid and precise by design

Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of ±0.002 in / 0.05 mm under any load, at any position. Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.

External limit switches

Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.

Easy-to-service electronics

Most electronics are housed in an integrated module, easily replaced without special tools or processes.

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Notifications

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Load capacity

750 lbF [3.4 kN]

Maximum travel:

32.0 in [813 mm]

Speed range:

0.001 - 70 in/min [0.02 - 1,800 mm/min]

Load accuracy
(% of full scale)

Test frame + force sensor, calibrated together: ±0.1%
Test frame alone: ±0.1%
Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%

Speed setting accuracy

±0.2%

Load sampling rate:

20,000 Hz

Data acquisition rate:

1,000 Hz

Speed accuracy:

±0%, stepper motor driven

Distance accuracy:

±0.002 in [0.05 mm], factory-compensated at up to full load

Distance resolution:

0.0005 in [0.01 mm]

Limit switch repeatability:

±0.001 in [0.03 mm]

Power:

Universal input 100-240 VAC, 50/60 Hz, 450W

Fuse type:

4A, 3AG, SLO BLO

Weight

184 lb [83 kg]

Environmental conditions

Indoor use only
Up to 6,500 ft [2,000 m] above sea level
Temperature range: 40 - 95°F [5 - 35°C]
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2

Conformance

Product Details

Load capacity

750 lbF [3.4 kN]

Maximum travel:

32.0 in [813 mm]

Speed range:

0.001 - 70 in/min [0.02 - 1,800 mm/min]

Load accuracy
(% of full scale)

Test frame + force sensor, calibrated together: ±0.1%
Test frame alone: ±0.1%
Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%

Speed setting accuracy

±0.2%

Load sampling rate:

20,000 Hz

Data acquisition rate:

1,000 Hz

Speed accuracy:

±0%, stepper motor driven

Distance accuracy:

±0.002 in [0.05 mm], factory-compensated at up to full load

Distance resolution:

0.0005 in [0.01 mm]

Limit switch repeatability:

±0.001 in [0.03 mm]

Power:

Universal input 100-240 VAC, 50/60 Hz, 450W

Fuse type:

4A, 3AG, SLO BLO

Weight

184 lb [83 kg]

Environmental conditions

Indoor use only
Up to 6,500 ft [2,000 m] above sea level
Temperature range: 40 - 95°F [5 - 35°C]
Humidity range: up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Mains supply voltage fluctuations up to ±10 % of the nominal voltage
Transient overvoltages up to the levels of Overvoltage Category II
Use in environments up to Pollution Degree 2

Conformance

Note

Note: Please read description carefully. Do not base your order on the picture presented.
