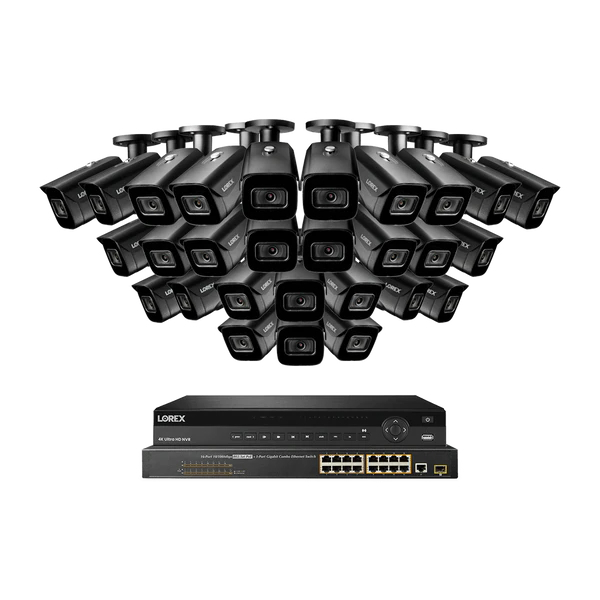

N883 Series - Lorex 4K Pro Network Video Recorder |
Video Transmission Technology | IP |
Channels | 16, 32 channel (32ch. includes 16ch. PoE Switch) |
Video Input | 16ch: 16 x PoE |
Video Outputs | 1 x VGA/1 x HDMI |
Audio Input | 1 x RCA |
Audio Output | 1 x RCA |
Alarm IN | 4 channels |
Alarm OUT | 2 channels |
System Navigation | USB Mouse/Front Panel Buttons |
Display Output Resolution | Up to 4K UHD, Auto Detect |
Live Display | - 16ch: 1/4/8/9/16
- 32Ch: 1/4/8/9/16/25/32
|
Live Display Speed (Max) | up to 4ch 4K@30fps |
OSD | On/Off |
Video Compression | H.265/H.264 |
Recording Resolution | 4K (8MP)/5MP/4MP/3MP/ 1080p/720p |
Recording Frame Rate | up to 30fps |
Recording Schedule | - Schedule recordings through Continuoun
- Motion
- Smart Motion (Person and Vehicle)
- Face Detection
- Alarm
- Day
- Hour per channel
|
Back-Up Media | USB, USB HDD |
Simultaneous Playback | 4ch@4K/30fps |
Playback Speed | Variable Max 16x |
Search | - By Time/Date
- All Motion Events or Smart Motion (Person/Vehicle)
- Area Search
|
Hard Drive Bays | 2 Bays |
Hard Drive Capacity | Up to 2 x 10TB (SATA) |
Backup Media | USB Flash Drive & USB HDD |
Storage Mirroring | Yes |
Smart Motion Detection | Support for Person and Vehicle Detection |
Mobile Viewing | |
Compatible APP | Lorex Cloud |
PC/Mac Remote Viewing | Yes/Lorex Cloud |
Email Notification | Text and Snapshot |
Network Interface | |
Network Bit Rate | 320 Mbps total |
DDNS | Yes (Optional) |
USB interface | USB 2.0 x 2 |
Operating Temperature | 14° ~ 131°F / -10° ~ 55°C |
FW Upgrade | USB/Network |
Watchdog Function | Yes |
Power Consumption | Approx. 15W (no HDD included) |
Supply Voltage | 100VAC-240VAC, 50/60hz |
Total PoE Power Output | 16 PoE: Max 25.5W for single port, 2200W total |
Unit Dimensions (W x D x H) | 14.7 x 12.9 x 2.1" / 375 x 327 x 53 mm |
Unit Weight | 5.8 lbs / 2.6 kg (excl. HDD) |
Humidity | 10 ~ 90% RH |
Package | Plain Box |
Package Weight | 11.6lb / 5.7kg |
Package Dimensions (W x D x H) | 21.5 x 16.3 x 6.7" / 546 x 414 x 170mm |
LNB9242B / LNB9252B Series - 4K Fixed Smart IP Bullet Security Camera |
Video Compression | H.265/H.264H (Main Stream & Sub Stream) |
Video Transmission Technology | IP |
Image Sensor | 8MP/4K 1/2.8" CMOS |
Video Format | NTSC |
Viewing Angle (Horizontal) | 107° |
Lens/Lens Type | 2.8mm F1.4/ Fixed |
Resolution/Frame Rate | Up to 4K (8MP) @30fps |
Effective Pixels | H:3840 x V:2160 |
HDR | Yes |
Termination | RJ45 |
Microphone/Speaker | Yes (Listen-in Audio)/No |
Siren | No |
Two-way Talk | No |
IR Night Vision Range (Ambient/Total Darkness) | 150ft (46m)/ 98ft (30m) |
Smart Motion Detection | Yes - Person and Vehicle Detection |
Deterrence | No |
Color Night Vision | Yes |
Body Material | Aluminum Alloy |
SD Card Slot | Yes |
Power Requirements | PoE (Power over Ethernet Class -802.3af) / 12V DC |
Power Consumption (max) | 510mA / Max 6.12W |
Camera Dimensions (H x Dia) | 2.9 x 7.4" / 74 x 187mm |
Camera Weight | 1.05lbs / 0.48kg |
Operating Temperature | -40°F ~ 140°F /-40°C ~ 60°C |
Humidity | < 95% RH |
Environmental Rating | IP67 (Indoor/Outdoor) |
Junction Boxes | ACJNCD3BKB (Black) |
Package Type | Plain box |
Package Dimensions (W x D x H) | 16 x 5.7 x 4.5" / 405 x 145 x 115mm |
Package Weight | 3.8lb / 1.7kg |
ACCLPS263B - 16-Channel PoE+ Switch |
Ports | - 16x 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
- 1x 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X port
- 1x 1000Base-X SFP interface, shared with port 17
|
PoE Standard | IEEE 802.3af / 802.3at |
PoE Power Output | 30.8 watts with 51V DC output ability (maximum) |
Total Power Output | 220 watts across ports 1~16 |
PoE Class | Class 0/1/2/3/4 |
Standard Compliance | - IEEE 802.3 Ethernet
- IEEE 802.3u Fast Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3x Full-duplex flow control
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet Plus
|
Operating Humidity | 5 ~ 95% (non-condensing) |
Operating Temperature | 32° ~ 122°F / 0° ~ 50°C |
Power Input | 100~240V AC, 50/60Hz, 3.5A |
Dimensions (W x D x H) | 17.36 x 8.20 x 1.73" / 440mm x 208 x 44mm |
Weight | 5.8lbs / 2.6kg |
Package Weight | 8.1lbs / 3.7kg |
Package Dimensions (W x D x H) | 21.8 x 11.6 x 3.4" / 553 x 294 x 86mm |
