Lascar, SGD 24-M-IP, PanelPilot 2.4" Waterproof Programmable TFT Panel Meter
Includes:
- Panel meter;
- Fixing kit;
- IP-67 connector;
- Quick start guide.
Features:
- 2.4" colour TFT screen;
- IP-67 and NEMA 6 rated;
- Rugged and scratch resistant Corning Gorilla Glass window;
- Supplied with free Windows design software, to setup and customize the display. Compatible with Windows 7, 8.1 and 10;
- Download meter applications from the ever expanding online library;
- Programmable with the USB interface;
- Simple and easy panel mounting solution;

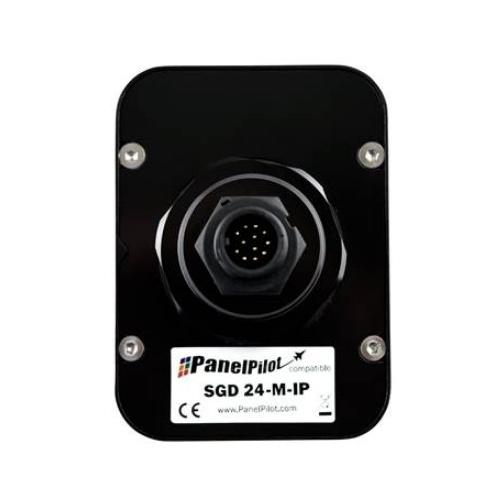

- IP-67 12-way connection;
- Wide operating voltage of 4V - 30V d.c.;
- 2 analogue inputs and 2 alarm outputs;
- SPI and I²C.
Application:
- Marine;
- Energy;
- Industrial.
The SGD 24-M-IP is a programmable panel meter featuring dual analogue inputs, alarm outputs and 2.4" TFT colour display. It is housed in an IP67 / NEMA 6 rated enclosure with a rugged and scratch resistant window. Panel or enclosure installation of the finished module is simple, using the 32 mm. nut and the IP67 connector supplied with the unit. Configured using the free PanelPilot M Software for Windows, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customize colours, text labels, units and input scaling before uploading to a display via USB. Note that the SGD 24-M-IP does not feature touch-screen functionality and therefore is not compatible with configurations requiring touch-input.
The SGD 24-M-IP is a PanelPilot Compatible IP-67 graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface. Using the PanelPilot software (available for Windows 7, 8.1 and 10), users are able to choose from an ever-increasing number of configurations which can then be customized to their needs. Colours, text labels, splash screen and input voltage scaling can all be customized by the user through the software and then uploaded to the SGD 24-M-IP through the USB connection. When setup is complete, the settings can be saved and then uploaded to the meter using the supplied USB cable. Panel or enclosure installation of the finished module is simple, using the 32 mm. nut and the IP67 connector supplied with the unit.
Voltage Input
The SGD 24-M-IP features 2 voltage inputs, which use a Programmable Gain Amplifier (PGA) to make the best use of available resolution (the smallest voltage range offers the highest resolution). The input voltage range is decided using the two voltages that the user enters in the scaling section of the Panel Pilot software. The software uses the smallest range available, which can accommodate both of the voltages entered by the user. The absolute maximum voltage input is 40V d.c.
USB Connection
The device will be powered for programming via USB. It typically takes between 10 and 30 seconds to send a configuration, with an additional 5 seconds needed for the hardware to reset.
Display
The display is a 2.4" TFT panel, with a resolution of 320 x 240 pixels and a 16-bit colour depth. Any graphics that are uploaded to the meter are automatically converted to this specification.
Panel Mounting
The SGD 24-M-IP can be fitted into panels of up to 10.5 mm. deep. A rubber seal is included to seal the mounting hole when the 32 mm. nut is fully tightened. Panel mounting hole cut-out is DIA 33 mm.
