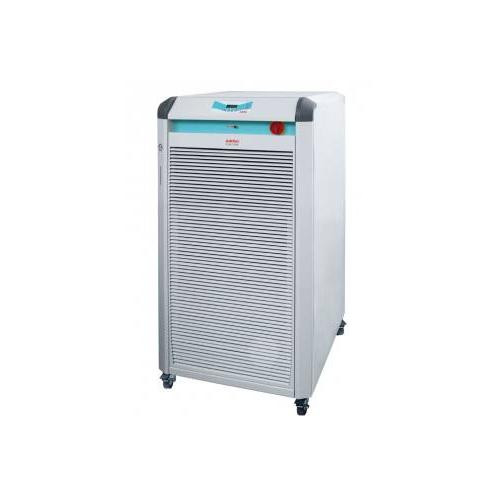

Buy Julabo 9676110.16, FLW11006 Recirculating Cooler, 230V/3Ph/60Hz

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Due to excessive size and weight, shipping charges cannot be automatically calculated for this order.

Technical Details

Dimensions(W x L x H)	30.7 x 33.5 x 58.3 in.
Filling volume	39 ... 47 l
Weight	551.2 lbs
Pump connections	G1¼" male
Pump connections	G1¼" male
Cooling Water Connection	G¾ in.
Barbed fittings inner diameter	1"
Working temperature range	-20 ... +40 °C
Temperature stability	±0.5 °C
Setting the resolution of the temperature display	0.1 °C
Temperature display resolution	0.1 °C
Ambient temperature	5 ... 40 °C
Return flow temperature max.	80 °C
Bath tank	Stainless steel
Cooling of compressor	1-stage Water
Cooling water pressure max.	87 psi
Cooling water difference pressure	29 ... 87 psi
Cooling water temperature max.	20 °C
1.0Cooling water consumption	18.2 l/min
Temperature control	PID1
Temperature display	LED
Temperature setting	Keypad

Dimensions(W x L x H)	30.7 x 33.5 x 58.3 in.
Filling volume	39 ... 47 l
Weight	551.2 lbs
Pump connections	G1¼" male
Pump connections	G1¼" male
Cooling Water Connection	G¾ in.
Barbed fittings inner diameter	1"
Working temperature range	-20 ... +40 °C
Temperature stability	±0.5 °C
Setting the resolution of the temperature display	0.1 °C
Temperature display resolution	0.1 °C
Ambient temperature	5 ... 40 °C
Return flow temperature max.	80 °C
Bath tank	Stainless steel
Cooling of compressor	1-stage Water
Cooling water pressure max.	87 psi
Cooling water difference pressure	29 ... 87 psi
Cooling water temperature max.	20 °C
1.0Cooling water consumption	18.2 l/min
Temperature control	PID1
Temperature display	LED
Temperature setting	Keypad

Note: Please read description carefully. Do not base your order on the picture presented.
