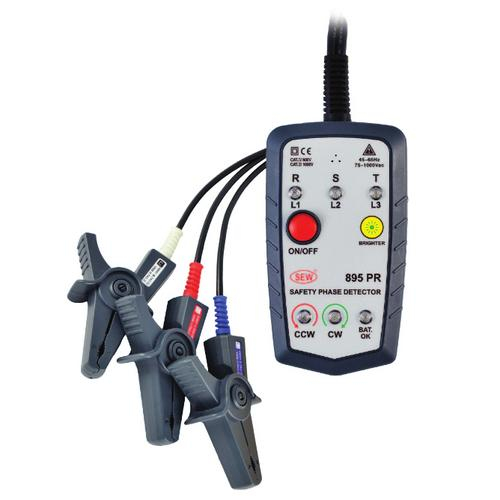

Buy Hoyt 895PR, Phase Sequence Indicator (Non-Contact Type)

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Battery Warning:: Battery Warning: Power LED Flashes at 7V +/- 0.2 or Less

Features:

Non-contact detector clips. No metal contact points to advocate greater safety
Two functions in one unit: open phase and phase sequence detection
Designed for checking a wider range of 3-phase power sources
LED display lights with buzzer indicator
Brightness button feature for better visibility in dimly lit areas or sunlight
Magnetic mounting feature

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measurement principle

Static induction

Input voltage

75 ~ 1000 Vac

Frequency range

45 - 65 Hz

Auto-off

5 min. after power on without detection

Low battery warning

Power LED flashes at 7V +/- 0.2 or less

Operating temperature and humidity

0 °C ~ 40 °C Max. 80% R.H.

Storage temperature and humidity

-10 °C ~ 50 °C Max. 80% R.H.

Cable length

Approx. 800 mm.

Dimensions

118 (L) x 72 (W) x 44 (D) mm.

Weight (battery included)

Approx. 380 g

Power source

9V (6LF22) x 1

Safety standard

EN 61010-1 CAT III 1000V / CAT IV 600V
EN 61326-1 EN 61557-1
EN 61557-7

Live Wire Check:

State

Indication

Live

Phase with L1, L2, L3, "ON" is live state

Missing line of earth line

LED doesn’t light up for missing line of earth line

Earth Line (Delta connection)

Phase with flashing LED is an earth phase

Positive phase

When the green CW LED is lit, the circuit will be forward under test. The buzzer sounds intermittently.

Reversed phase

td>When the red CCW LED is lit, the circuit will be reverse under test. The buzzer sounds continuously.

Detect Indications

L1, L2, L3 LED ON is live phase indication. Open phase which LED is off.
CW ON is correct phase sequence
CCW ON is incorrect phase sequence

Product Details

Measurement principle

Static induction

Input voltage

75 ~ 1000 Vac

Frequency range

45 - 65 Hz

Auto-off

5 min. after power on without detection

Low battery warning

Power LED flashes at 7V +/- 0.2 or less

Operating temperature and humidity

0 °C ~ 40 °C Max. 80% R.H.

Storage temperature and humidity

-10 °C ~ 50 °C Max. 80% R.H.

Cable length

Approx. 800 mm.

Dimensions

118 (L) x 72 (W) x 44 (D) mm.

Weight (battery included)

Approx. 380 g

Power source

9V (6LF22) x 1

Safety standard

EN 61010-1 CAT III 1000V / CAT IV 600V
EN 61326-1 EN 61557-1
EN 61557-7

Live Wire Check:

State

Indication

Live

Phase with L1, L2, L3, "ON" is live state

Missing line of earth line

LED doesn’t light up for missing line of earth line

Earth Line (Delta connection)

Phase with flashing LED is an earth phase

Positive phase

When the green CW LED is lit, the circuit will be forward under test. The buzzer sounds intermittently.

Reversed phase

td>When the red CCW LED is lit, the circuit will be reverse under test. The buzzer sounds continuously.

Detect Indications

L1, L2, L3 LED ON is live phase indication. Open phase which LED is off.
CW ON is correct phase sequence
CCW ON is incorrect phase sequence

Note

Note: Please read description carefully. Do not base your order on the picture presented.
