Options and Related Products

Measuring Ranges:: Measuring Ranges: Frequency: 40 Hz - 400 Hz
Option:: Option: Standard

Features:

The 865 PR is a detector with LEDs to show the detection better visible than neon
Three functions in one unit, including open phase, phase sequence and 3 phase motor rotation
Designed for checking a wider range of 3 phase power source from 100V to 500V
Indicates R.S.T LEDs which frequency range from 40Hz to 400Hz
Wide range detection of motor frequency range from 2Hz to 400Hz
Fixed magnets for convenient measurement

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Measurement principle

Contact Live Wire

Input voltage

100 - 500Vac

Frequency range

40Hz - 400Hz

Operating temperature and humidity

0 °C ~ 40 °C Max. 80% R.H.

Storage temperature and humidity

-10 °C ~ 50 °C Max. 80% R.H.

Cable length

Approx. 1 m.

Dimensions

128 (L) x 72 (W) x 44 (D) mm.

Weight (battery included)

Approx. 220 g

Power source

9V (6F22) x 1

Safety standard

EN 61010-1 CAT III 500V
EN 61326-1 EN 61557-1
EN 61557-7

Product Details

Measurement principle

Contact Live Wire

Input voltage

100 - 500Vac

Frequency range

40Hz - 400Hz

Operating temperature and humidity

0 °C ~ 40 °C Max. 80% R.H.

Storage temperature and humidity

-10 °C ~ 50 °C Max. 80% R.H.

Cable length

Approx. 1 m.

Dimensions

128 (L) x 72 (W) x 44 (D) mm.

Weight (battery included)

Approx. 220 g

Power source

9V (6F22) x 1

Safety standard

EN 61010-1 CAT III 500V
EN 61326-1 EN 61557-1
EN 61557-7

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

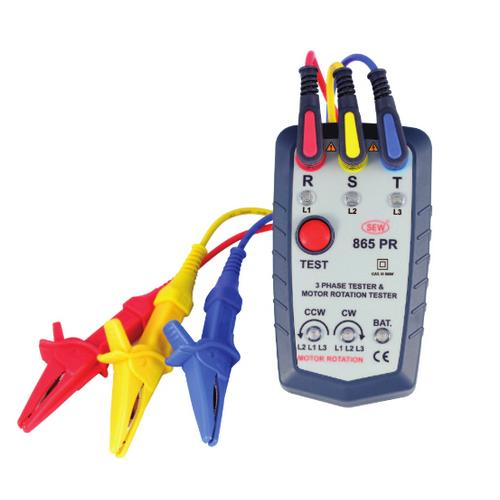

Hoyt 865PR Phase Sequence Indicator (Contact Type)
