BlackBox, LPH240A-H-48, Hardened PoE PSE Switch with (6) 10/100 RJ-45 Ports & 48 VDC Terminal-Block Power Input
Hardened PoE PSE Switch with (6) 10/100 RJ-45 Ports & 48 VDC Terminal-Block Power Input. Powers remote PoE devices in industrial environments.
Quick Facts
- Features six 10-/100-Mbps RJ-45 ports, four of which are PoE PSE ports.
- Extended temperature range of -13 to +140° F (-25 to +60° C).
- -48-VDC terminal-block power input.
Further Details
Hardened PoE PSE Switches from Black Box power remote PoE devices such as security cameras and wireless access points-even in industrial or factory environments where temperature is an issue. Rugged metal cases serve as a heat sink to dissipate heat, giving these hardened switches a temperature range of -13 to +140° F (-25 to +60° C). Plus, the cases are sealed to resist contaminants such as dust, dirt, moisture, smoke, and insects.
These capable industrial switches are available with six 10-/100-Mbps copper ports, with five 10-/100-Mbps copper ports plus a 100-Mbps fiber uplink port, or with four 10-/100-Mbps copper ports plus two 100-Mbps fiber ports. Fiber ports are available with a variety of connectors, in single- or multimode, and with ranges of up to 20 kilometers. The switches provide 802.3af PoE power for up to four PoE PD devices on four RJ-45 ports.

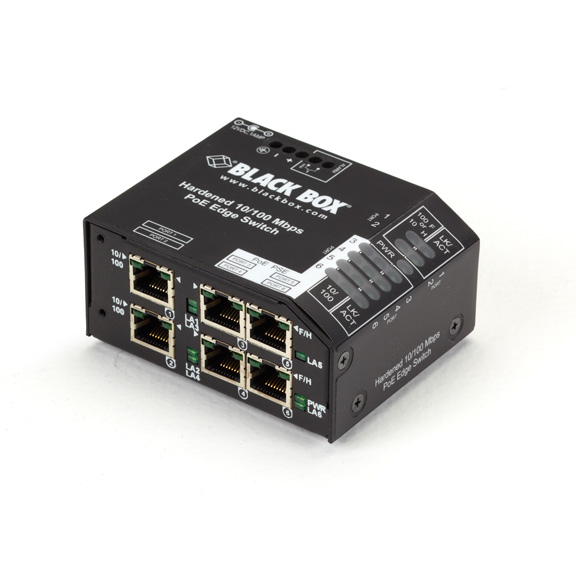

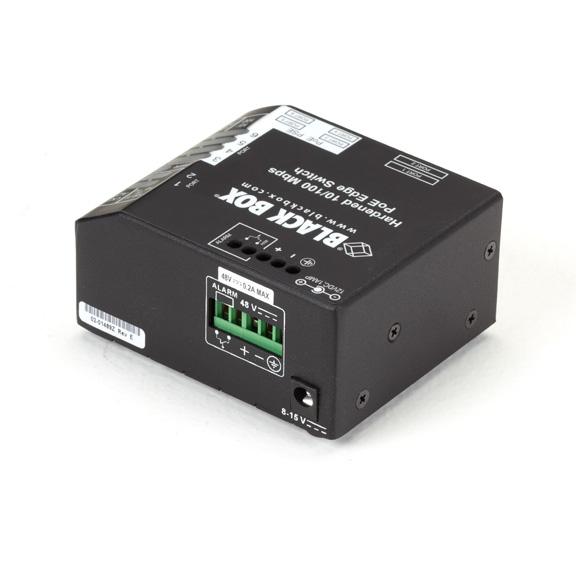

The switch featured here has six autosensing 10-/100-Mbps copper Ethernet ports, four of which are PoE PSE ports. It's powered by -48-VDC power via terminal block and comes with clips for panel mounting. To DIN rail mount the switch, order the DIN Rail Mounting Bracket (DIN-RAIL MC2).
