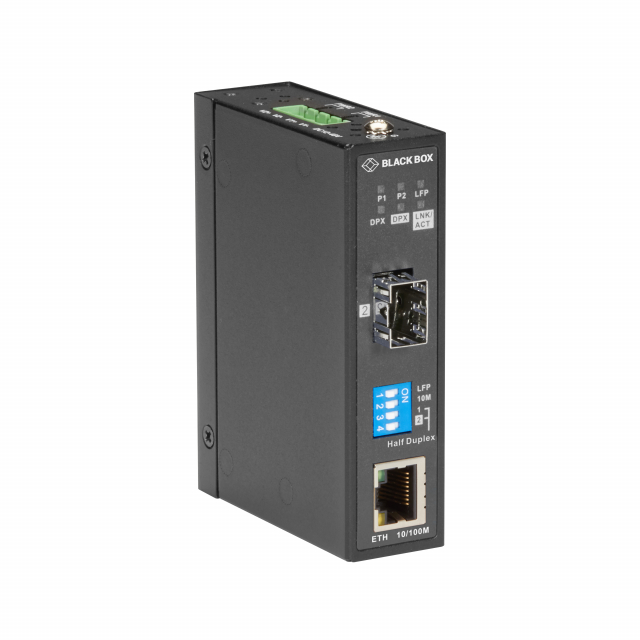

Black Box, LMC280A, LMC280 Series Fast Ethernet (100-Mbps) Industrial Media Converter - 100-Mbps Copper to 100-Mbps Fiber SFP
LMC280A Includes Only:
- (1) FAST ETHERNET MEDIA CONVERTER SFP
- (1) WALL MOUNTING KIT (2 BRACKETS, 8 SCREWS)
- (1) DIN RAIL MOUNTING KIT (INSTALLED)
- (1) 6-POSITION PHOENIX CONNECTOR
- (1) DUST COVER
Features:
- Converts 10/100/1000Base-T(X) to 100/1000Base-X
- PoE support; P.S.E. fully compliant with IEEE802.3at standard
- Extended operating temperature of -40° to 75° C
- SFP socket with link fault pass through feature for simplified troubleshooting
- Rugged IP-30 housing
This media converter provides a cost-effective way to add fiber to your existing network infrastructure. It converts 10/100Base-T(X) to 100BaseFX with ease. Additionally, this media converter supports MDI/MDIX auto detection, so you do not need to use crossover cables.

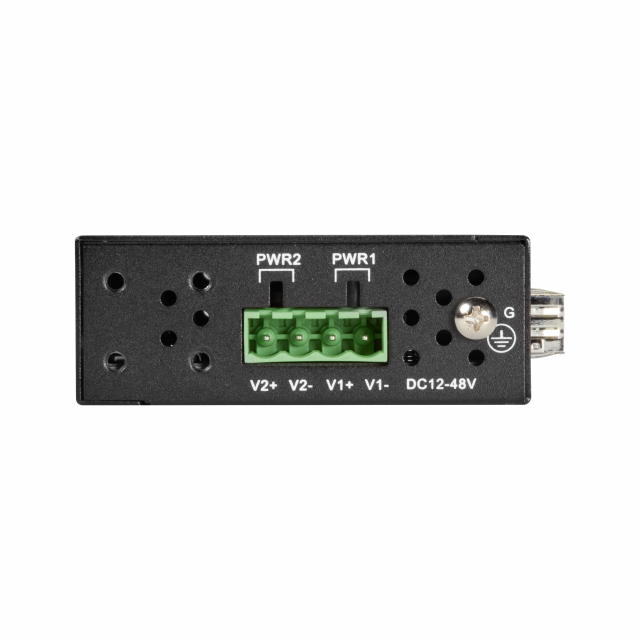

The Fast Ethernet Industrial Media Converter provides consistent network performance in the harshest work environments on earth. It features rigid IP-30 housing, an operating temperature range of -40° to 158° F, and has dual power inputs that each accept a wide voltage range (12 to 48 VDC).
When one side of your network link fails, the other side continues transmitting packets and waits for a response that never arrives from the disconnected side. Link fault pass-through forces the active link to shut down as soon as it notices the other link has failed, giving the application software a chance to fix the issue. This maximizes the uptime of your network.
