Standards | CE; EMS: FCC Part 15, CISPR 22 (EN55022) Class A; CSA C22; IEC61000-1; Vibration, shock & freefall: IEC68-2-6, -27, -32; RoHS/WEEE: RoHS (Pb free) and WEEE compliant |
Humidity | 5 to 95% non-condensing |
Operating Temperature | -40 to +167°F (-40 to +75° C) |
Storage Temperature | -40 to +185°F (-40 to +85° C) |

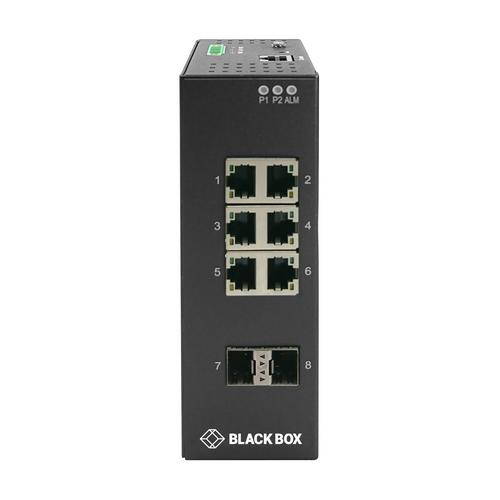

Connectors | (6) RJ-45, 10/100/1000-Mbps, auto-negotiation, MDI-MDI-X auto-crossover; (2) 100/1000-Mbps SFP slots (LC); (1) RJ-45 RS-232 console port |
Dimensions | 6"H x 4.3"W x 2.3"D (15.4 x 10.9 x 6.0 cm) |
Enclosure | IP30 |
Failover | Link loss recovery < 20ms; Single and multiple rings supported |
Flow Control | IEEE 802.3x full-duplex, Back-pressure half-duplex |
Jumbo Frames | 9 KB |
Link Aggregation | Static trunk or Dynamic via LACP (Link Aggregation Control Protocol) |
Link Layer Discovery Protocol (LLDP) | IEEE 802.1ab |
Management | CLI, WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); HTTPs, SSH; Radius Client for Management; TFTP/FTP for Configuration Import/Export; TFTP/FTP for Firmware Upgrade; Syslog; RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB; RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB; DHCP; NTP/SNTP |
Management Security | HTTPs, SSH, Radius Client for Management |
MIBs | RFC 1757 RMON 1,2,3,9; RFC 2674 Q-Bridge MIB, RFC-1213 MIB-II; RFC-1493 Bridge MIB; RFC 2233 IF MIB |
Mounting Type | DIN-rail, wallmount |
Multicast Protocols | IGMP v1, v2 with up to 255 multicast groups; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering |
Network Redundancy | Fast failover protection rings: Link loss recovery <20ms; Single & Multiple rings supported; Spanning Tree Protocol: IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP; Port Trunk with LACP: Static trunk or Dynamic via LACP (Link Aggregation Control Protocol) |
Power | Input: Redundant terminals, reverse power protection; 12-58 VDC; Maximum power: 14 Watts |
QoS | IEEE 802.1p, 4 queues per port, Scheduling schemes SPQ, WRR |
Security | Port security: IP and MAC-based access control, IEEE 802.1X authentication Network Access Control; Management Security: HTTPs, SSH Radius Client for Management |
Spanning Tree Protocol | IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP |
VLAN | IEEE 802.1Q tag-based; IEEE 802.1ad Double Tagging; IGMP v1, v2; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering; IEEE 802.1ab Link Layer Discovery Protocol (LLDP) |
VLAN Support | IEEE 802.1Q tag-based; IEEE 802.1ad Double Tagging; IGMP v1, v2; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering; IEEE 802.1ab Link Layer Discovery Protocol (LLDP) |
Weight | 2.3 lb. (1 kg) |
Indicators | LEDs: Power, Ethernet port link and speed |
IGMP Multicast Groups | IGMP v1, v2 with up to 255 multicast groups; IGMP snooping and querying; Immediate leave and leave proxy; Throttling and filtering |
