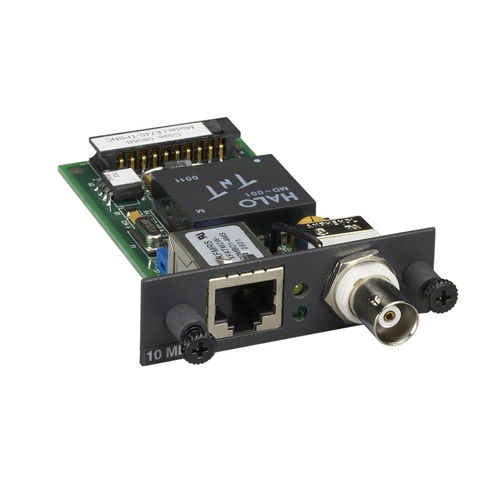

Black Box, LH740-TPSTS20-R3, 100BASE-TX/Singlemode Plus ST Media Converter Conversion Module
Support the greatest mix of 10-, 100-, and 1000-Mbps segments for UTP and single- or multimode fiber.
Quick Facts
- Convert 10-, 100-, or 1000-Mbps segments between twisted-pair and single- or multimode fiber in half- or full-duplex mode.
Further Details
- LinkLoss provides instant notification of fiber segment link problems.
- FiberAlert minimizes the problems associated with the loss of one strand of fiber cable.
- Fiber multimode to single-mode protocol-independent modules support ATM and Gigabit Ethernet applications.
- All copper ports feature autocross so you never need a crossover cable.
Single-strand fiber modules send and receive over one single-mode fiber strand, so you save on infrastructure costs.
All modules with copper ports feature an internal two-position switch on the twisted-pair port, which eliminates the need for a crossover cable. Just move the switch to the appropriate setting on the module before installing the card.
For the fiber models, the LinkLoss feature enables you to identify problems on the fiber segment from the twisted-pair side. You can also identify problems on the twisted-pair segment from the fiber side.
The FiberAlert feature minimizes the problems associated with the loss of one strand of fiber cable. If a strand goes out, the local site administrator is notified of a fault and can quickly determine where it is located.
