BlackBox LBH101A Ethernet Standard Temperature

Type: Standard Temperature, Power: 115 VAC
  • Brand BlackBox
  • Part # LBH101A
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Type:
Type: Standard Temperature
Power:
Power: 115 VAC

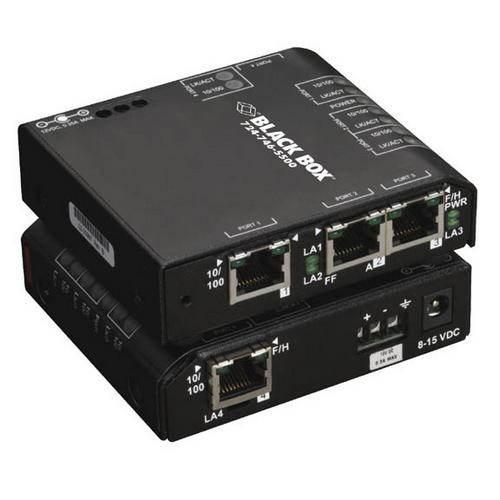

BlackBox, LBH101A, 4 Port Fast Ethernet Switch Standard Temperature, 115 VAC

Features:

  • Four 10-/100-Mbps RJ45 switch ports.
  • Suitable for dusty or dirty environments with a temperature range between 32 and +104º F (0 to +40º C).
  • 100-240VAC power input.
  • Includes panel mount kit.
  • Part of the BLACK BOX® Media Converter Switch family, providing network extension for any environment.
  • Rackmount up to 16 units in the optional Rackmount Tray or Powered Rackmount Tray.
  • Mount on DIN rails with optional brackets.
  • Two sets of LEDs enable you to see status information from the front, top, or side.
  • Support both half- and full-duplex operation.
  • Support VLAN tagging and spanning tree passthrough.
  • All ports support autonegotiation, so you can easily attach any 10- or 100-Mbps device.

Convenient Switches are versatile autosensing four-port switches that enable you to quickly add ports anywhere on your Ethernet network. They’re designed as part of our Media Converter Switch family and are available in the same robust chassis choices to fit environments ranging from comfortable offices to demanding outdoor installations. You can also choose from a wide range of power supplies and mounting options.

Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Reviews
General
Altitude-200 to 13,000 ft. (-60.9 to 3962.4 m)
CE ApprovalYes
Connectors(4) RJ-45
EnclosureSteel
Humidity5–95%, noncondensing
Indicators(2) Power, (8) 10/100, (8) LK/ACT
MAC Addresses2K
PowerStandard 115-VAC models: 115-VAC, 60-Hz external power supply; Standard 240-VAC models: 240-VAC, 50-Hz external power supply with IEC power connector; Hardened and Extreme AC models: 100–240-VAC, 47–63-Hz external power supply; 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature RatingAll models: Storage: -40 to +185° F (-40 to +85° C); Standard models: Operating: 32 to 104° F (0 to 40° C); Hardened models: Long-term operating: -13 to +140° F (-25 to +60° C), Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C); Extreme models: Long-term operating: -40 to +167° F (-40 to +75° C), Short-term operating: -58 to +212° F (-50 to +100° C), Cold start to -40° F (-40° C)
WeightSwitch: 0.3 lb. (0.1 kg); Standard and Hardened Power Supplies: 0.4 lb. (0.2 kg); Extreme Power Supplies: 0.5 lb. (0.2 kg)
Product Details
General
Altitude-200 to 13,000 ft. (-60.9 to 3962.4 m)
CE ApprovalYes
Connectors(4) RJ-45
EnclosureSteel
Humidity5–95%, noncondensing
Indicators(2) Power, (8) 10/100, (8) LK/ACT
MAC Addresses2K
PowerStandard 115-VAC models: 115-VAC, 60-Hz external power supply; Standard 240-VAC models: 240-VAC, 50-Hz external power supply with IEC power connector; Hardened and Extreme AC models: 100–240-VAC, 47–63-Hz external power supply; 12-VDC models: Internal terminal block for 12-VDC power plus jack for AC power supply (not included); 24-VDC models: Internal terminal block for 24-VDC power plus jack for AC power supply (not included); 48-VDC models: Internal terminal block for 48-VDC power plus jack for AC power supply (not included)
Size3.5"H x 3"W x 1"D (8.9 x 7.6 x 2.5 cm)
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1p/q
Temperature RatingAll models: Storage: -40 to +185° F (-40 to +85° C); Standard models: Operating: 32 to 104° F (0 to 40° C); Hardened models: Long-term operating: -13 to +140° F (-25 to +60° C), Short-term operating: -40 to +185° F (-40 to 85° C), Cold start to -4° F (-20° C); Extreme models: Long-term operating: -40 to +167° F (-40 to +75° C), Short-term operating: -58 to +212° F (-50 to +100° C), Cold start to -40° F (-40° C)
WeightSwitch: 0.3 lb. (0.1 kg); Standard and Hardened Power Supplies: 0.4 lb. (0.2 kg); Extreme Power Supplies: 0.5 lb. (0.2 kg)
