BlackBox ACX2MR-DHH-2C DKM KVM Receiver Card

Interconnect Connector: (2) RJ-45 , Resolutions Up To: 1920 x 1080
  • Brand BlackBox
  • Part # ACX2MR-DHH-2C
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Interconnect Connector:
Interconnect Connector: (2) RJ-45
Resolutions Up To:
Resolutions Up To: 1920 x 1080

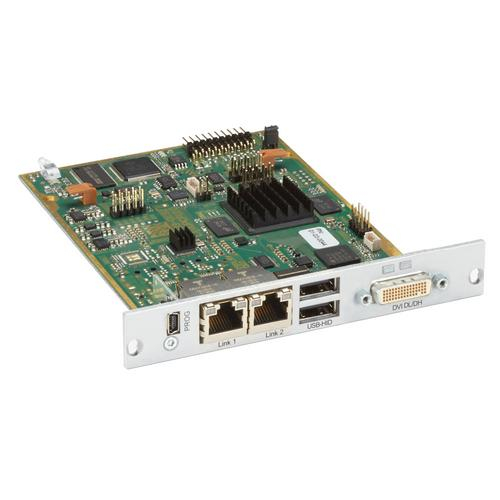

Black Box, ACX2MR-DHH-2C, DKM KVM Receiver Card, Dual-Head, CATx, Redundant Ports

Features:

  • Copper receiver card for DKM FX Extender Modular Housings.
  • Supports dual-head resolutions up to 1920 x 1080 on each video head.
  • Supports redundant interconnect ports but does not change video quality.
  • Total bandwidth stays the same whether one or two ports are used.

This product works with:

  • DKM FX Modular Extension Housings with 2, 4, 6, or 21 slots (ACXMODH2, ACXMODH2R, ACXMODH4, ACXMODH4R, ACXMODH6R, and ACXMODH21R)
Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Dealer
All sales are final
All sales are final
  • These are made-to-order items.
  • This product is not eligible for return or exchange unless defective.
  • The average lead-time is 1 or 2 weeks.

Technical Details

Optional Accessories
Reviews
ApprovalsCE, FCC, RoHS
Connectors(2) RJ-45 interconnect, (1) LFH59 F, (1) USB Type B F / (2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance400 feet (140 m), solid conductor CATx; 200 feet (70 m), stranded conductor CATx
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.25 lb (0.11 kg)
Product Details
ApprovalsCE, FCC, RoHS
Connectors(2) RJ-45 interconnect, (1) LFH59 F, (1) USB Type B F / (2) USB Type A F, (1) mini USB
Dimensions0.7" H x 5"W x 5.75" D (1.8 x 12.7 x 14.6 cm)
Distance400 feet (140 m), solid conductor CATx; 200 feet (70 m), stranded conductor CATx
EnvironmentalOperating humidity: 80%, non condensing
InterfaceDual-link DVI-D video, USB HID (keyboard and mouse)
IP-EnabledNo
Leads SupportedDual-link DVI-D video, USB HID (keyboard and mouse)
Operating System SupportAll Windows, Mac, SUN, Linux/UNIX
OSD SupportYes, when a DKM FX switch is installed; use hotkeys
PowerTaken from frame, ACXMODHXX chassis; Output: Uses 5 VDC, consumes 800 mA; MTBF: 400,000
Storage temperature-13 to +140° (-25 to +60° C);
Weight0.25 lb (0.11 kg)
