Features

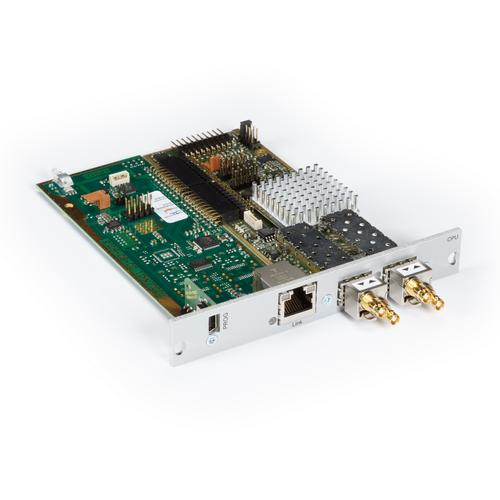

SDI transmitter module for DKM Modular Housing chassis.
Converts from SDI to DVI, HDMI and DisplayPort and vice versa.
Works over CAT5e, CAT6 and CAT6A cabling.
Supports SDI, HD-SDI and 3GSDI resolutions (720p at 50/60, 1080i at 50/60, 1080p at 50/60).
Includes an integrated scaler so the appropriate resolution is displayed.
Features integrated interlacing and de-interlacing.
Provides SDI audio embedding and de-embedding.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Return and Warranty

Please note that return requests for BlackBox items must be submitted within 14 days after the delivery date.

Connectors	(1) RJ-45 interconnect; (2) BNC (one input, one output); (1) mini USB
Dimensions	0.7"H x 5"W x 5.75"H x (1.8 x 12.7 x 14.6 cm)
Distance	Over CATx solid conductor: 400 ft. (140 m); Over CATx stranded conductor: 200 ft. (70 m) OSD supported
Interface	Mini-BNC
IP-Enabled	No
Leads Supported	SDI
Operating Temperature	0 to +45° C (32 to 113° F)
PC Selection	Point to point: no interface, always connected; DKM KVM switch: Hotkeys via other RX units, macro or API
Power	From chassis
Resolution	SDI: 720p50, 1080p50, 720p60, 1080p60, 1080i50
Storage temperature	-25 to +60° C (-13 to 140° F)
Weight	0.6 lbs (0.3 kg)

Connectors	(1) RJ-45 interconnect; (2) BNC (one input, one output); (1) mini USB
Dimensions	0.7"H x 5"W x 5.75"H x (1.8 x 12.7 x 14.6 cm)
Distance	Over CATx solid conductor: 400 ft. (140 m); Over CATx stranded conductor: 200 ft. (70 m) OSD supported
Interface	Mini-BNC
IP-Enabled	No
Leads Supported	SDI
Operating Temperature	0 to +45° C (32 to 113° F)
PC Selection	Point to point: no interface, always connected; DKM KVM switch: Hotkeys via other RX units, macro or API
Power	From chassis
Resolution	SDI: 720p50, 1080p50, 720p60, 1080p60, 1080i50
Storage temperature	-25 to +60° C (-13 to 140° F)
Weight	0.6 lbs (0.3 kg)
