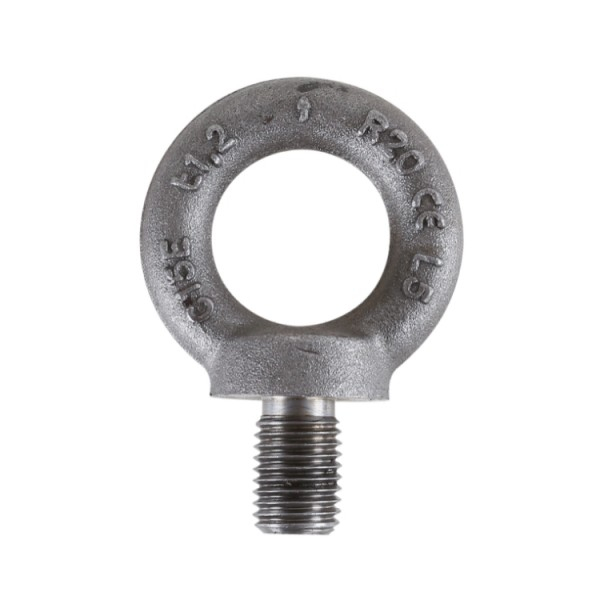

Beta Tools, 080400357, 8040EN M56F Lifting Eye Bolt, Self-Coloured, Pitch 4mm, WLL 11500kg

Technical Data

safety factor: 6
heat treatment: normalizing
traceability code

Laboratory Tests

chemical analysis
metallographic analysis
tensile test

Certificates

Technical product specifications
Test report UNI EN10204 type 2.2
Inspection certificate UNI EN10204 type 3.1
CE Declaration of Conformity
DIN 580:2018-04

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details


A, Thread tolerances class 8g	M56
Pitch, mm	4
B, mm	38
C, mm	110
D, mm	42
E, mm	78
F, mm	100
G, mm	187
H, mm	184
Positioning torques, Nm	600
WLL, kg	11500

Product Details


A, Thread tolerances class 8g	M56
Pitch, mm	4
B, mm	38
C, mm	110
D, mm	42
E, mm	78
F, mm	100
G, mm	187
H, mm	184
Positioning torques, Nm	600
WLL, kg	11500

Note: Please read description carefully. Do not base your order on the picture presented.
