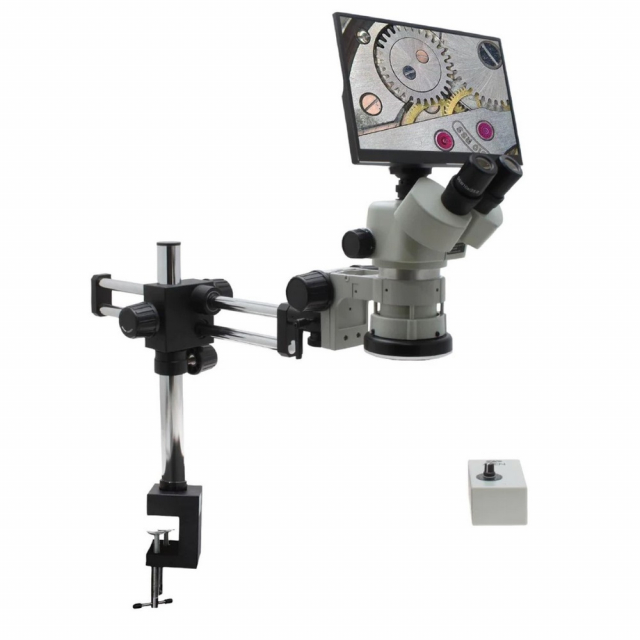

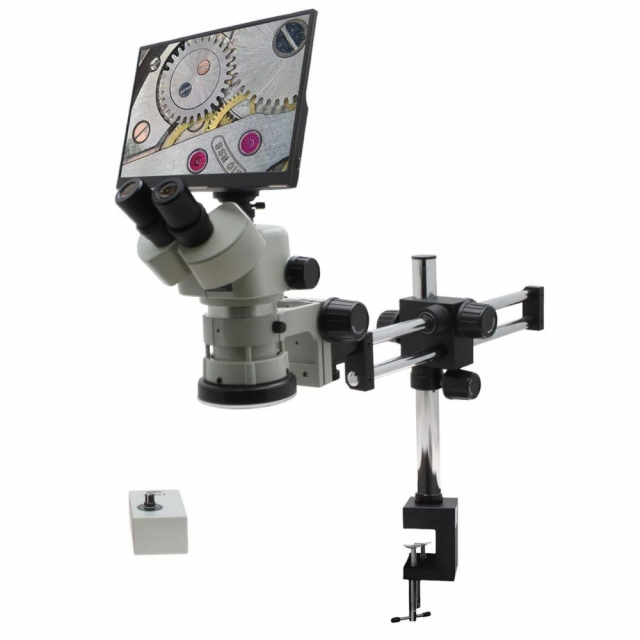

Aven, 26800B-713, SPZV-50 Stereo Zoom Microscope 6.7x - 50x on Ultra Glide Stand with LED Ring Light
26800B-713 Includes Only:
- 1 x SPZV True Trinocular Stereo Zoom Microscope Body with Photo tube
- 2 x 10x Eyepieces
- 2 x Rubber Eyeguards
- 1 x Dust Cover
- 1 x Instruction Manual
Features:
- Straight Light Path - Single light path with one bend prevents image distortion
- Custom Made Prisms - Prisms custom designed to fit precisely, eliminating gaps for dust and contamination
- Unibody Construction - Assures constant prism alignment
- Greaseless Nylon Gears - Industrial streangth gears with tight tolerances
- Single Gear objective Lens Movement - Keeps the objective lenses aligned for the life of the microscope
All-in-one stereo zoom microscope system. The SPZV-50 microscope provides crisp clear 3D images and a wide field of view. 6.7x to 50x continuous zoom with 10x eyepieces. View objects beneth the microscope through the traditional eyepieces, or on the Mighty Cam Eidos screen.
Designed For Ergonomic Use
OSHA has found that working with microscopes for long hours is straining both to the visual system and the musculoskeletal system. Operators are forced into an unusual exacting position with little possibility to move the head or body. They are often forced to assume an awkward work posture such as the head bent over the eye tubes, upper part of the body bent forward, the hand reach high up for a focusing control or with the wrist bent in an unnatural position. The Eidos microscope system is designed to overcome these issues. The 11.6" HD monitor with the built in 2 mega pixel HD camera is mounted at eye level allowing operators to sit comfortably in a good working position, making the inspection process less tiresome. The microscope can still be used when required providing the operator the best of both worlds
SPZV-50 Stereo Zoom Microscope
SPZV-50 true trinocular stereo zoom microscopes offers the best in class zoom ratio with super sharp 3D images, wide field of view and long working distance which makes it an ideal choice for inspection and capturing and viewing images on an monitor. High precision optics ensures excellent contrast and high definition 3D images from edge to edge. Magnification range from 3.35x to 200x with optional auxiliary lenses and eyepieces. A wide variety of stands, cameras and illumination is available to provide you with a microscope system to meet your individual requirements.
Digital Inspection Made Easy
Eliminates Body Fatigue and Eye StrainAven's Mighty Cam Eidos 5 mega-pixel camera with a built in 11.6-inch screen can be attached to a trinocular microscope or video lens with a C or CS mount. The camera features a 5M Sony sensor that provides stunning high-quality images for you to view on the built in 11.6" HD monitor. This eliminates the eye strain and body fatigue associated with frequent optical microscope use.
Capture Stunning Image/Video Files
No Computer Required
Save high-resolution image and video files directly to USB storage, with no need for a PC for image processing.
HDMI Output
The Eidos features an HDMI output designed to connect to an external monitor. This allows operators to view live images on the built-in monitor, as well as an external monitor
Built-in measurement
The included computational imaging software provides users with more functions such as:
- Calibration editor
- Radius measurement
- 2 point circle
- 3 point circle
- Crosshair
- Line measurement tool
- Center distance
- Concentric circle tool
- Annotation tool
- Screen shot tool
For more information, please see Manual
