Features:

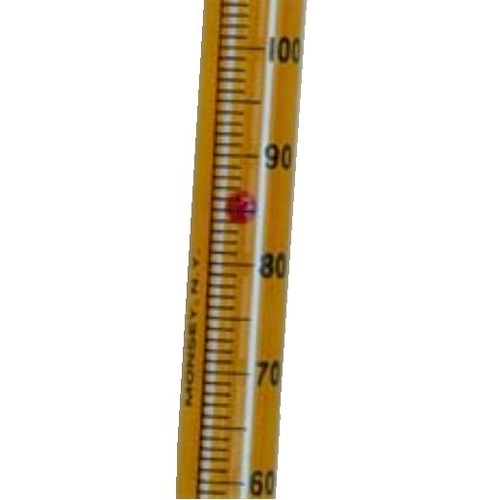

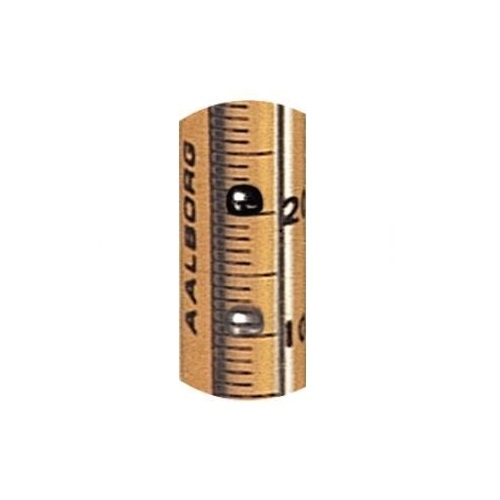

- Rib-guided or fluted metering tubes facilitate stable/accurate readings
- Magnifier lens in front shield to enhance reading resolution
- Interchangeability of flowtubes and floats
- Optigrad scales minimize parallax and eye fatigue
- Simple means of panel mounting

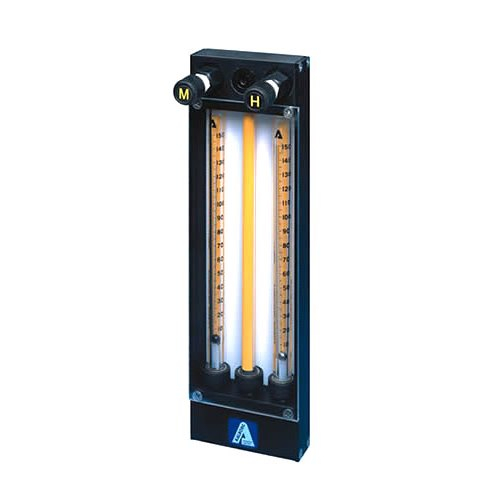

Series G gas proportioner meter. Blending two or three gases in homogeneous infinitely variable concentrations directly at the end use point, this model G gas proportioner is unsurpassed in convenience and economy. Gas proportioners pay for themselves since they eliminate the need for expensive custom blended gas mixtures. They lend flexibility and economy to the utilization of component gas cylinders and piped-in supply lines. Another advantage in laboratory investigations is the freedom to reproducibility increase or decrease concentrations during the course of an experiment. The flowrates are not affected by downstream pressure variations as long as back pressures do not approach or exceed the input pressure. Input pressures of up to 200 psig (13.8 bars) can be used; however, customers very often find 50 psig (3.45 bars) a convenient setting to work with. Meters are available with built-in needle valves (CV), high precision metering valves (MFV) with non-rising stems, or with no valves. The higher cost of MFV valves is justified whenever high sensitivity control and resolution are desirable particularly in conjunction with metering tubes of very low flowrates.
For more information, please see Data Sheet
Meantime you may review Aalborg bestsellers or review the list of all available Aalborg products in the table below.
You may request a quote for a specific product or just contact us at any time
For more products see Product List
Part Number |
G21A5-VA0 |
G21A5-VB0 |
G21A5-VC0 |
G21A5-VD0 |
G21A5-VE0 |
G21A5-VF0 |
G21A5-VH0 |
G21A5-BA0 |
G21A5-BB0 |
G21A5-BC0 |
G21A5-BD0 |
G21A5-BE0 |
G21A5-BF0 |
G21A5-BH0 |
G21A5-EA0 |
G21A5-EB0 |
G21A5-EC0 |
G21A5-ED0 |
G21A5-EE0 |
G21A5-EF0 |
G21A5-EH0 |
G21A5-TA0 |
G21A5-TB0 |
G21A5-TC0 |
G21A5-TD0 |
G21A5-TE0 |
G21A5-TF0 |
G21A5-TH0 |
G21A6-VA0 |
G21A6-VB0 |
G21A6-VC0 |
G21A6-VD0 |
G21A6-VE0 |
G21A6-VF0 |
G21A6-VH0 |
G21A6-BA0 |
G21A6-BB0 |
G21A6-BC0 |
G21A6-BD0 |
G21A6-BE0 |
G21A6-BF0 |
G21A6-BH0 |
G21A6-EA0 |
G21A6-EB0 |
G21A6-EC0 |
G21A6-ED0 |
G21A6-EE0 |
G21A6-EF0 |
G21A6-EH0 |
G21A6-TA0 |
G21A6-TB0 |
G21A6-TC0 |
G21A6-TD0 |
G21A6-TE0 |
G21A6-TF0 |
G21A6-TH0 |
G21S5-VA0 |
G21S5-VB0 |
G21S5-VC0 |
G21S5-VD0 |
G21S5-VE0 |
G21S5-VF0 |
G21S5-VH0 |
G21S5-BA0 |
G21S5-BB0 |
G21S5-BC0 |
G21S5-BD0 |
G21S5-BE0 |
G21S5-BF0 |
G21S5-BH0 |
G21S5-EA0 |
G21S5-EB0 |
G21S5-EC0 |
G21S5-ED0 |
G21S5-EE0 |
G21S5-EF0 |
G21S5-EH0 |
G21S5-TA0 |
G21S5-TB0 |
G21S5-TC0 |
G21S5-TD0 |
G21S5-TE0 |
G21S5-TF0 |
G21S5-TH0 |
G21S6-VA0 |
G21S6-VB0 |
G21S6-VC0 |
G21S6-VD0 |
G21S6-VE0 |
G21S6-VF0 |
G21S6-VH0 |
G21S6-BA0 |
G21S6-BB0 |
G21S6-BC0 |
G21S6-BD0 |
G21S6-BE0 |
G21S6-BF0 |
G21S6-BH0 |
G21S6-EA0 |
G21S6-EB0 |
G21S6-EC0 |
G21S6-ED0 |
G21S6-EE0 |
G21S6-EF0 |
G21S6-EH0 |
G21S6-TA0 |
G21S6-TB0 |
G21S6-TC0 |
G21S6-TD0 |
G21S6-TE0 |
G21S6-TF0 |
G21S6-TH0 |
G31A5-VA0 |
G31A5-VB0 |
G31A5-VC0 |
G31A5-VD0 |
G31A5-VE0 |
G31A5-VF0 |
G31A5-VH0 |
G31A5-BA0 |
G31A5-BB0 |
G31A5-BC0 |
G31A5-BD0 |
G31A5-BE0 |
G31A5-BF0 |
G31A5-BH0 |
G31A5-EA0 |
G31A5-EB0 |
G31A5-EC0 |
G31A5-ED0 |
G31A5-EE0 |
G31A5-EF0 |
G31A5-EH0 |
G31A5-TA0 |
G31A5-TB0 |
G31A5-TC0 |
G31A5-TD0 |
G31A5-TE0 |
G31A5-TF0 |
G31A5-TH0 |
G31A6-VA0 |
G31A6-VB0 |
G31A6-VC0 |
G31A6-VD0 |
G31A6-VE0 |
G31A6-VF0 |
G31A6-VH0 |
G31A6-BA0 |
G31A6-BB0 |
G31A6-BC0 |
G31A6-BD0 |
G31A6-BE0 |
G31A6-BF0 |
G31A6-BH0 |
G31A6-EA0 |
G31A6-EB0 |
G31A6-EC0 |
G31A6-ED0 |
G31A6-EE0 |
G31A6-EF0 |
G31A6-EH0 |
G31A6-TA0 |
G31A6-TB0 |
G31A6-TC0 |
G31A6-TD0 |
G31A6-TE0 |
G31A6-TF0 |
G31A6-TH0 |
G31S5-VA0 |
G31S5-VB0 |
G31S5-VC0 |
G31S5-VD0 |
G31S5-VE0 |
G31S5-VF0 |
G31S5-VH0 |
G31S5-BA0 |
G31S5-BB0 |
G31S5-BC0 |
G31S5-BD0 |
G31S5-BE0 |
G31S5-BF0 |
G31S5-BH0 |
G31S5-EA0 |
G31S5-EB0 |
G31S5-EC0 |
G31S5-ED0 |
G31S5-EE0 |
G31S5-EF0 |
G31S5-EH0 |
G31S5-TA0 |
G31S5-TB0 |
G31S5-TC0 |
G31S5-TD0 |
G31S5-TE0 |
G31S5-TF0 |
G31S5-TH0 |
G31S6-VA0 |
G31S6-VB0 |
G31S6-VC0 |
G31S6-VD0 |
