3B Scientific, UE3070800-230, Experiment for Electricity: Training Oscilloscope, 230 V, 50/60 Hz

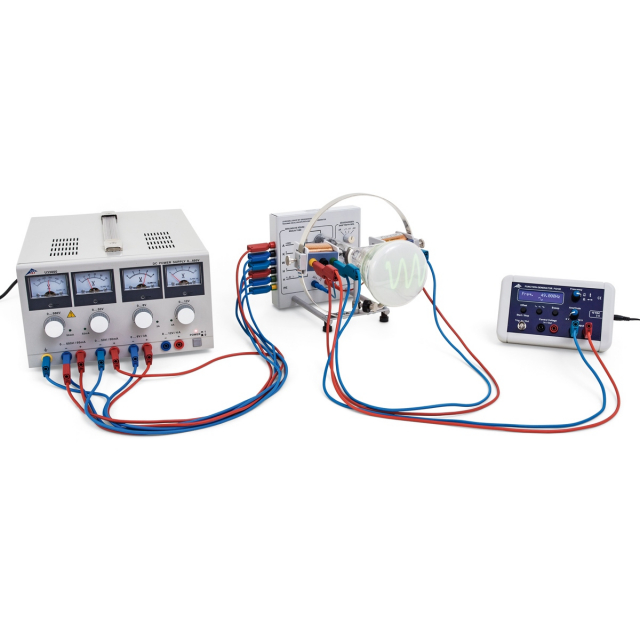

UE3070800-230 Includes Only:
- Training Oscilloscope
- DC Power Supply 0-500 V (230 V, 50/60 Hz)
- Function Generator FG 100 (230 V, 50/60 Hz)
- Set of 15 Safety Experiment Leads, 75 cm
Features:
The student oscilloscope can be used to study the physical principles of the time-resolved display of electrical signals on a fluorescent screen. In a Braun tube, a focused electron beam is generated, and the point at which it falls on the fluorescent screen is observed as a spot of green light. When the electron beam is deflected by a sawtooth voltage applied between a pair of plates, it moves at a constant speed from left to right across the screen, then flies back to the starting point. This process is repeated cyclically at a frequency that can be adjusted. The time-dependent voltage that is to be displayed is applied to a coil outside the tube, so that the beam is deflected vertically in the magnetic field of the coil. The time-dependence of the signal is resolved by the simultaneous horizontal motion of the electron beam and displayed on the fluorescent screen.
For more information, please see Data Sheet
