Locoloc (Loos), #1-P, 3/16" Copper and Aluminum Pneumatic Swager Tool

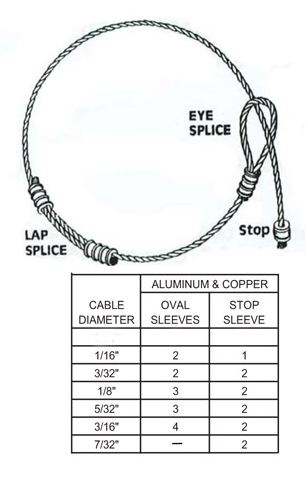

Eye, lap and stop sleeve splicing of cables up to 3/16" diameter are made sure and easy with the new hand swagers. Design features "over-center" leverage, which transmits a powerful snap-action to the final thrust of the jaws... assures a tight, clean compression every time. Easy adjustment. Individual replacement parts are available . Parts list included with tool. Gauge included with each tool.
For the shop requiring a production tool the #1-P Pneumatic Swager eliminates hand labor and automates swaging of Locoloc® oval and stop sleeves.
This tools is for Copper and Aluminum only.
Utilizing the jaws of the #1-BSC Bench Swager the #1-P Pneumatic Swager will swage all 1/16", 3/32", 1/8", 5/32", and 3/16" oval and stop sleeves plus 7/32" stop sleeves. (11 sizes in all!)
Foot switch operation allows free movement of hands and quick disconnect to your air supply. Operates on standard air supply. (140 psi, minimum.)
Compressions
Your LOCOLOC® Swager has been designed to give you years of trouble free service. To obtain the best possible performance, we recommend:
- Clean and lubricate all moving parts regularly
- Keep all bolts tight
- Keep your swager properly adjusted
