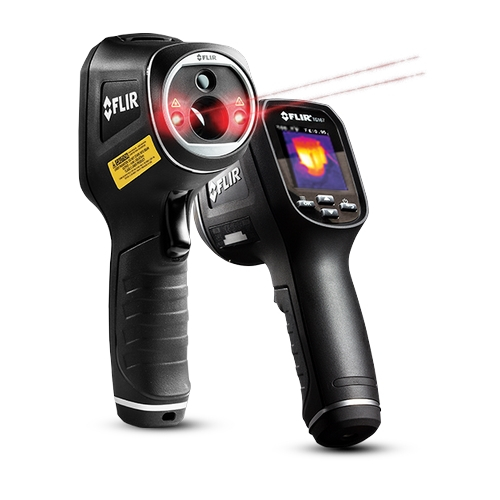

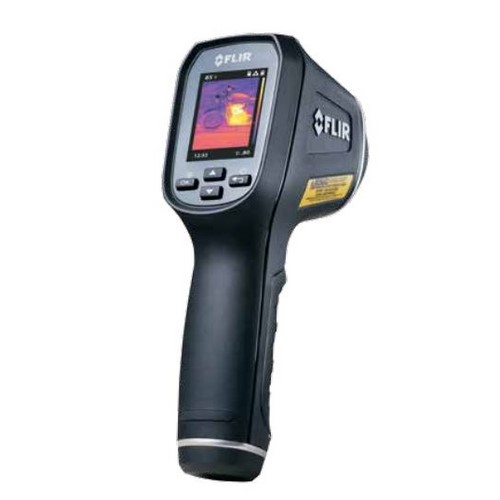

Teledyne FLIR TG167 74701-0104 Spot Thermal Camera with Image Storage

  • Brand Teledyne FLIR
  • Part # TG167
  • Model # 74701-0104
  • Not for Export
Availability
Discontinued
Export
Not for Export
Share:

Replacement

This product is discontinued, no longer available. Replacement part numbers:

74701-0104 Spot Thermal Camera with Image Storage

The FLIR TG167 Spot Thermal Cameras bridge the gap between single spot infrared thermometers and FLIR's legendary thermal cameras. Equipped with FLIR's exclusive Lepton® micro thermal sensor, these cameras let you see the heat so you know exactly where to target the measurement spot. Easily find unseen hot and cold spots for instant troubleshooting, and store images and data to show customers and include in reports.

Includes

  • Spot Thermal Camera
  • Wrist Lanyard
  • 8 GB MicroSD Card
  • Printed Documentation
  • Power Supply with Separate USB Cable

Features

  • It'S All In The Details - The 25-degree field of view gives you image clarity on small details from a farther distance, including small connectors and wires.
  • Grab and Go Simplicity - The TG167 is Intuitive to operate - no special training required. Easily save images and data for documentation, and download your images fast over USB or via removable micro SD.
  • Rugged and Reliable - Designed for the harshest environments, the TG167 is durable enough to withstand a 2- meter drop for your toughest jobs.
  • Thermal Imaging - FLIR's Innovative Lepton® IR Imaging Engine
  • Safety - 24:1 spot size ratio for safer distance measuring
  • Easy operation - Intuitive to operate with no special training required
  • Save Images - Easily save images and data for documentation
  • Rugged - Built to withstand a 2 meter drop
Report incorrect product information
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Optional Accessories
Reviews
Imaging and optical data
Field of view (FOV)25° x 19.6°
IR resolution80 x 60 pixels
Thermal sensitivity/NETD< 150 mK
Minimum focus distance)0.1 m (4 in.)
Image frequency9Hz
FocusFocus free
Detector data
Detector typeFocal plane array (FPA), uncooled microbolometer
Spectral range8 - 14 µm
Image presentation
Display2.0 in. TFT LCD
Measurement
Object temperature range - 25 to +380°C ( - 13 to +716°F)
Accuracy±1.5% or 1.5°C (2.7°F)
Distance to spot ratio24:1
Minimum measurement distance26 cm (10 in.)
Center spotYes
Color palettesHot Iron, Rainbow, Grayscale
Image Storage
Memory typeMicro SD card
Image storage capacity75 000 pictures with included 8 GB Micro SD card
Memory expansion32 GB SD card maximum
Saved image formatBitmap (BMP) image with temperature and emissivity
Laser pointers
LaserDual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
Power system
Battery typeRechargeable Li ion battery
Battery voltage3.7 V
Battery operating time>5 hours of continuous scanning with lasers
Battery charge life30 days minimum
Charging systemBattery is charged inside the camera
Charging time4 hours to 90%, 6 hours to 100%
Power managementAdjustable; OFF, 1 min., 2 min., 5 min., 10 min.
Environmental data
Operating temperature range-10 to +45°C (+14 to 113°F)
Storage temperature range-30 to +55°C (-22 to 131°F)
Humidity (operating and storage)0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Physical data
Camera weight, incl. battery0.312 kg (11 oz.)
Camera size (LxWxH)186 mm x 55 mm x 94 mm (7.3 in. x 2.2 in. x 3.7 in.)
Tripod mounting1/4 in.-20 on handle bottom
Product Details
Imaging and optical data
Field of view (FOV)25° x 19.6°
IR resolution80 x 60 pixels
Thermal sensitivity/NETD< 150 mK
Minimum focus distance)0.1 m (4 in.)
Image frequency9Hz
FocusFocus free
Detector data
Detector typeFocal plane array (FPA), uncooled microbolometer
Spectral range8 - 14 µm
Image presentation
Display2.0 in. TFT LCD
Measurement
Object temperature range - 25 to +380°C ( - 13 to +716°F)
Accuracy±1.5% or 1.5°C (2.7°F)
Distance to spot ratio24:1
Minimum measurement distance26 cm (10 in.)
Center spotYes
Color palettesHot Iron, Rainbow, Grayscale
Image Storage
Memory typeMicro SD card
Image storage capacity75 000 pictures with included 8 GB Micro SD card
Memory expansion32 GB SD card maximum
Saved image formatBitmap (BMP) image with temperature and emissivity
Laser pointers
LaserDual diverging lasers indicate the temperature measurement area, activated by pulling the trigger
Power system
Battery typeRechargeable Li ion battery
Battery voltage3.7 V
Battery operating time>5 hours of continuous scanning with lasers
Battery charge life30 days minimum
Charging systemBattery is charged inside the camera
Charging time4 hours to 90%, 6 hours to 100%
Power managementAdjustable; OFF, 1 min., 2 min., 5 min., 10 min.
Environmental data
Operating temperature range-10 to +45°C (+14 to 113°F)
Storage temperature range-30 to +55°C (-22 to 131°F)
Humidity (operating and storage)0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Physical data
Camera weight, incl. battery0.312 kg (11 oz.)
Camera size (LxWxH)186 mm x 55 mm x 94 mm (7.3 in. x 2.2 in. x 3.7 in.)
Tripod mounting1/4 in.-20 on handle bottom
